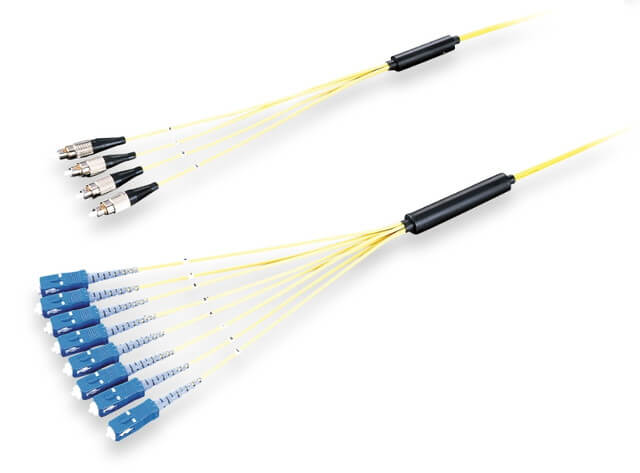

- FO (Fan-Out) Optical Fiber Cords with Connector
Features
- Tape cords include SM 2-, 4- and 8-fiber optical cords.
- Fan-out portion can be attached with FC, SC, MU, and other connectors.

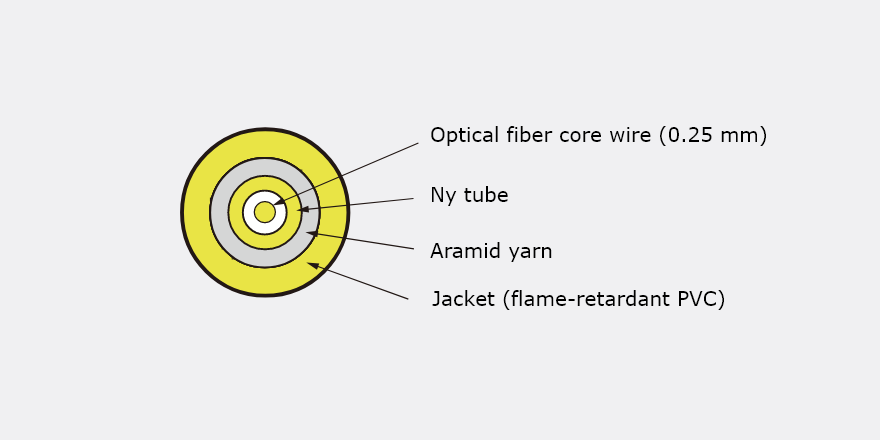

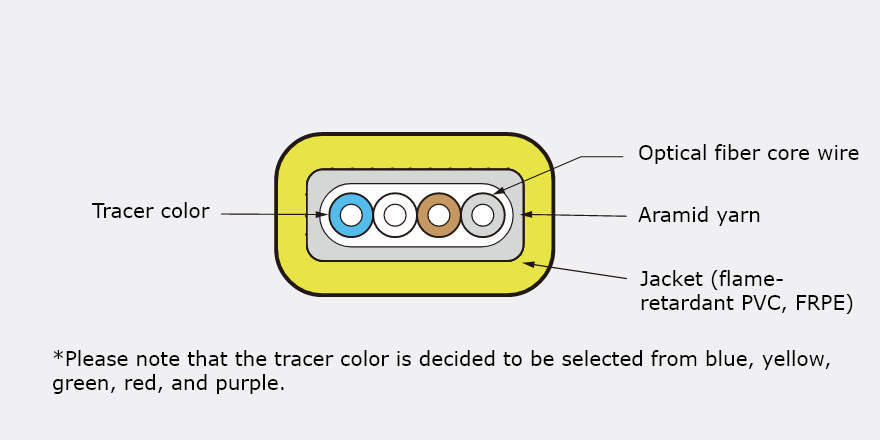

Section drawing
Specifications
| Tape cord type | T2TC2535-VW1 | T4TC2535-VW1 | T8TC2545-VW1 | |
|---|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | |||
| No. of fibers | (fibers) | 2 | 4 | 8 |
| Outer diameter of tape cord | (mm) | 2.5×3.5 | 2.5×4.5 | |
| Reinforced tube diameter | (mm) | 1.7 | ||
| Branch length | (mm) | 200 - 2000 | ||
| FO protection sleeve | (mm) | di. 8×52.5 | ||
| Allowable bending radius | (mm) | 15 (thickness direction) | ||
