Specified cord: E03+
Single-fiber cord: The cord number is indicated at the base of the connector with a mark band.
The specified cords are shown in the table below.
The single-fiber cords of termination cables and assembly cables are processed.

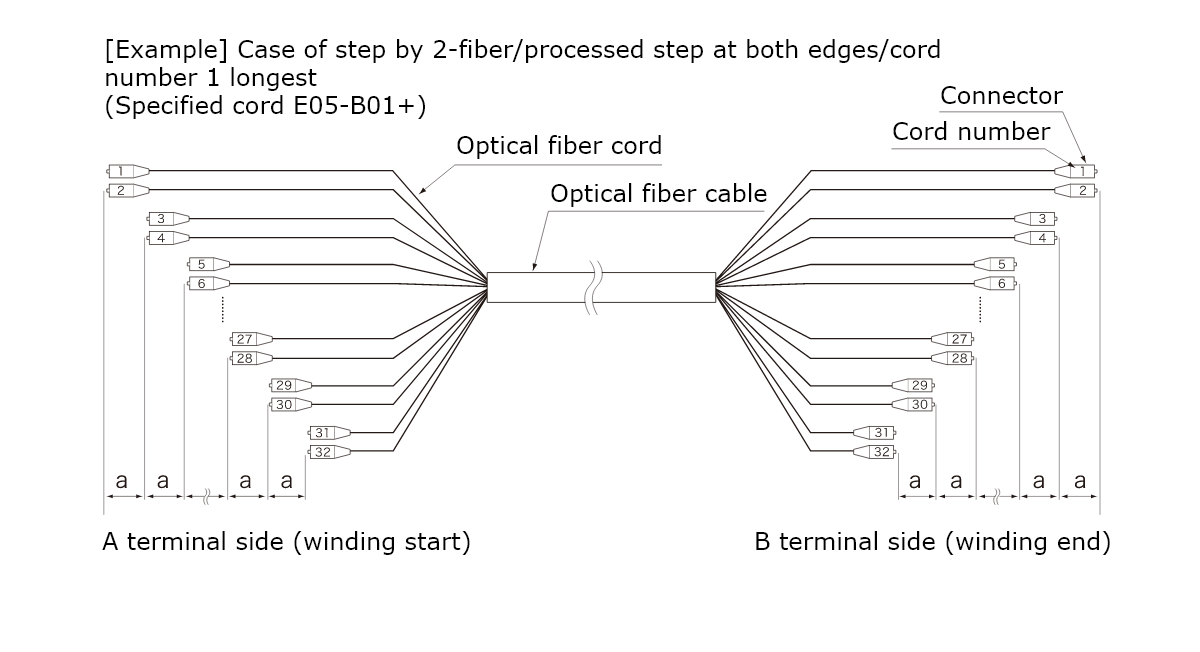

Sequence | Dimension a | Processing unit | Step processed edge | Specified cord |
---|---|---|---|---|
Cord number 1 is the longest. | 50 mm | Every 1-fiber | Both ends | E05-A01+ |
A-end only | E05-A05+ | |||
B-end only | E05-A09+ | |||
Every 2-fiber | Both ends | E05-B01+ | ||
A-end only | E05-B05+ | |||
B-end only | E05-B09+ | |||
100 mm | Every 1-fiber | Both ends | E05-A03+ | |
A-end only | E05-A07+ | |||
B-end only | E05-A11+ | |||
Every 2-fiber | Both ends | E05-B03+ | ||
A-end only | E05-B07+ | |||
B-end only | E05-B11+ |
The specified cords are shown in the table below.
Processing details | Applicable end | Specified cord |
---|---|---|
① Duplex cord splitting stop | Termination with connector | E07-H+ |
② Terminal of flat/assembly cable capped | Both ends | E07-1+ |
A-end only | E07-2+ | |
B-end only | E07-3+ | |
50 mm from the jacket | E14-1+ | |
100 mm from the jacket | E14-2+ | |
③ Change in tension member length
Application to connector attaching edge |
150 mm from the jacket | E14-8+ |
500 mm from the jacket | E14-3+ | |
100 mm from the connector | E14-A+ | |
200 mm from the connector | E14-5+ | |
500 mm from the connector | E14-6+ |
Attach a 2-fiber (2-gang type) connector.
2-fiber optical connector application edge | Specified cord |
---|---|
2-fiber connector only at one edge | E08-1+ |
2-fiber connector at both edges (①) | E08-2+ |
2-fiber connector at both edges (②) | E08-3+ |
When a 2-fiber optical connector is attached to both edges, specify the connection direction (①/②) according to the illustration below.

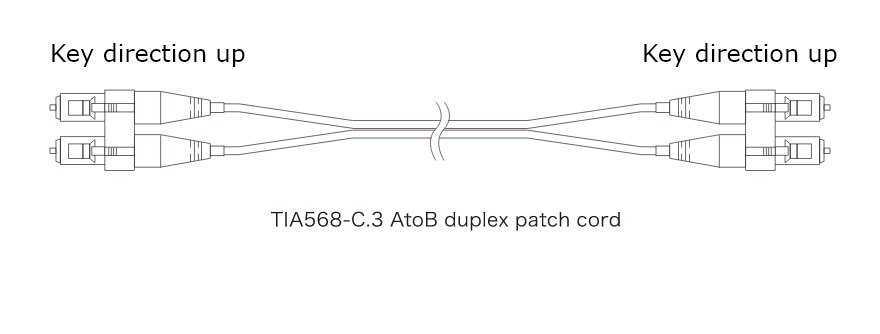

For ① (e.g.: LCF connector at both edges)
Attach a 2-fiber connector at both edges asymmetrically.
The connector key is directed at the same side.

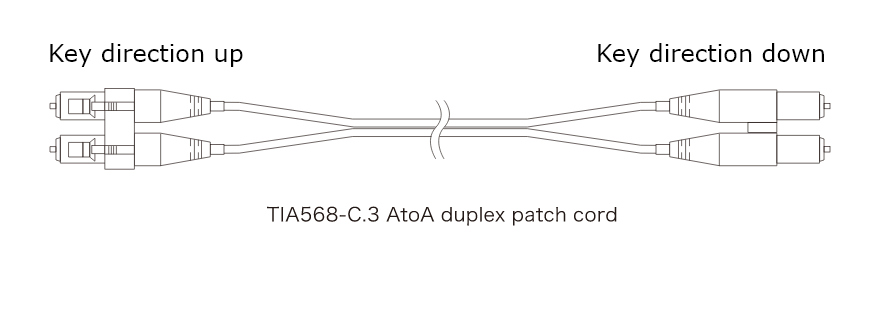

For ② (e.g.: LCF connector at both edges)
Attach a 2-fiber connector at both edges symmetrically.
The connector key is turned over at both edges.
