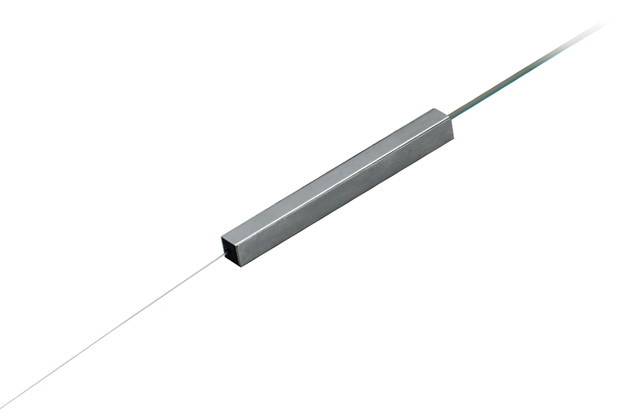

PLC Splitter
[Applications]
FTTH (Fiber To The Home) and CATV
[Product name]
1×4PWG0104
1×8PWG0108
1×16PWG0116
1×32PWG0132
Features
- Splitting of optical signal at high uniformity
- Low wavelength dependency of insertion loss High long-term reliability
Specifications
| Product name | PWG | |||
|---|---|---|---|---|
| Port | 1×4 | 1×8 | 1×16 | 1×32 |
| Wavelength used | 1310/1550 nm | |||
| Insertion loss | ≤7.4 dB | ≤11.0 dB | ≤14.3 dB | ≤17.9 dB |
| PDL | ≤0.3 dB | ≤0.5 dB | ≤0.5 dB | ≤0.5 dB |
| Return loss | ≥50 dB | |||
| Case dimensions | 4×4×40 mm | 4×4×50 mm | ||
Please inquire regarding other types.
