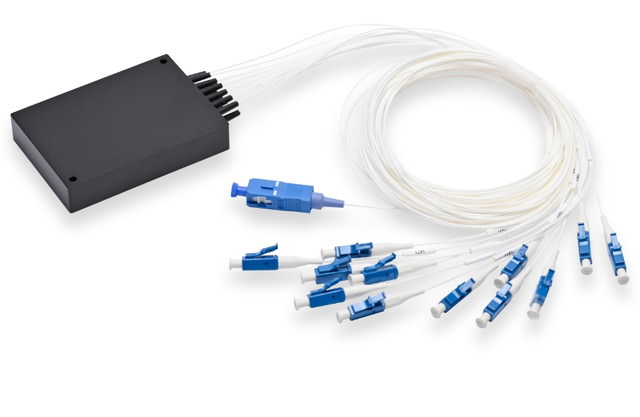

CWDM (Mux/Demux)
[Applications]
For wavelength multiplexing transmission
[Product name]
CW 4CH Mux or Demux <NC> Type (A - C)
CW 4CH Mux or Demux <SC/SPC> Type (A - C)
CW 4CH Mux or Demux <SC/APC> Type (A - C)
Features
- 4, 8 channels.
Specifications
| 4 channel | ||
|---|---|---|
| Wavelength | Type A | 1471, 1491, 1511, 1531 nm |
| Type B | 1551, 1571, 1591, 1611 nm | |
| Type C | 1511, 1531, 1551, 1571 nm | |
| Wavelength interval | 20 nm | |
| Wavelength range | Specified wavelength ± 6.5 nm | |
| Insertion loss | ≤2.5 dB | |
| Isolation | ≥30 dB | |
| Directivity | ≥50 dB | |
| Return loss | ≥40 dB | |
| Operating temperature range | –20 - 70℃ | |
| Storage temperature | –40 - 85℃ | |
| Dimensions | 120×80×8 mm | |
| Fiber type | di. 0.9 mm | |
| Length of fiber | With connector | 1000±100 mm |
| No connector | 1500±100 mm | |
Recommended products/related products
