10G Color sheath LSZH NM LAP Eco

[Applications]
Indoor horizontal LAN wiring, wiring between racks (Available at outdoor cabling)

Nine sheath colors have been added to the list.
Standard color SM: yellow, GI: blue or yellow green
If you would like to use the cord with a color other than the above, please contact a salesperson for your account.

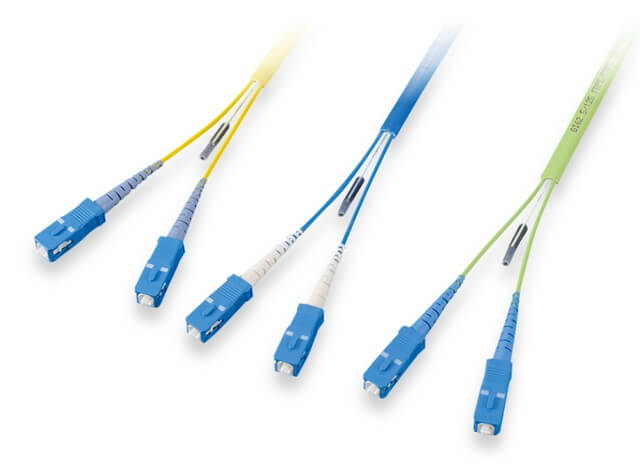

Cord diameter: 1.7 mm, cord jacket: halogen free
Cable type is easily identified by the cord and sheath colors.
Meets NTT specification for indoor optical cables.

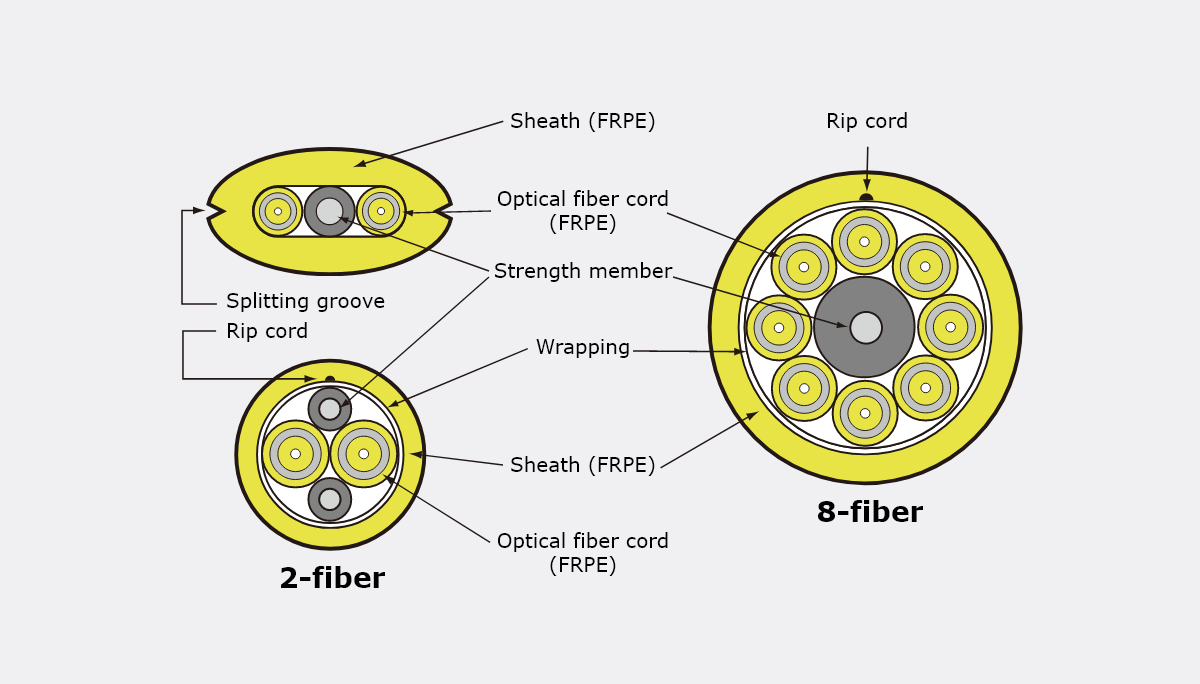

Flat type is standard for 2/4 fibers cable,and round type is also available for them.
FRP non-metallic strength member is prepared for your demand.

If you would like a nonmetallic tension member, the allowable tensile strength and bending radius may differ.
If you do, contact us.

An optical cord 2.0 mm in diameter is also available.

→ Can slide sideways

Code		TC1.7-n-E-FR
Optical fiber type		SM, GI (50/125)
No. of fibers	(fibers)	2	4	6	8	12	16	24	32	2*	4*
Cord diameter	(mm)	1.7
Sheath diameter	(mm)	3.5×6.5	5.1×10.7	7.2	8.3	10.9	12.8	12.5	15.0	6.0	6.5
Sheath color		Standard color SM: yellow, GI: blue or yellow green
Weight	(kg/km)	30	60	50	60	100	140	120	180	40	40
Allowable tensile strength	(less than N)	240				430			660	480	240
Allowable bending radius	(more than mm)	30	35	45	50	70	80	80	90	40	40
Flame-retardant characteristics		JIS C 3005 inclination

Note: *2, *4 indicate round type
