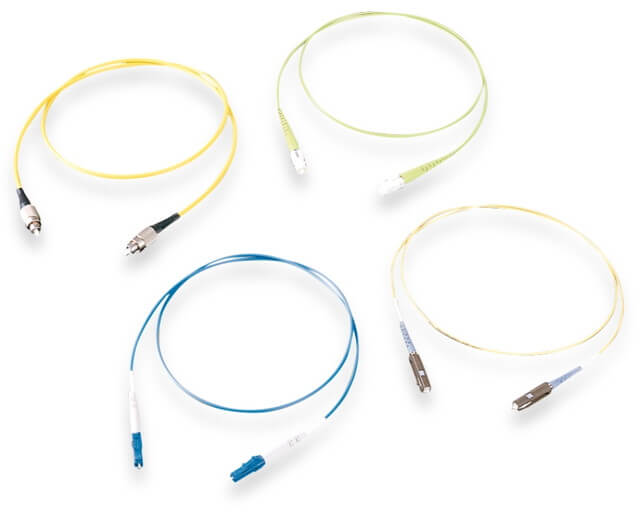

Simplex Optical Fiber Cords
(2.0/1.7 mm type)
[Applications]
Wiring between devices, in-rack wiring
Features
- This product with flame-retardant PVC jacket features flame retardancy meeting UL Riser specifications.
- This product with a 17 mm diameter features eco-friendly specifications, using flame-retardant PE for its jacket.

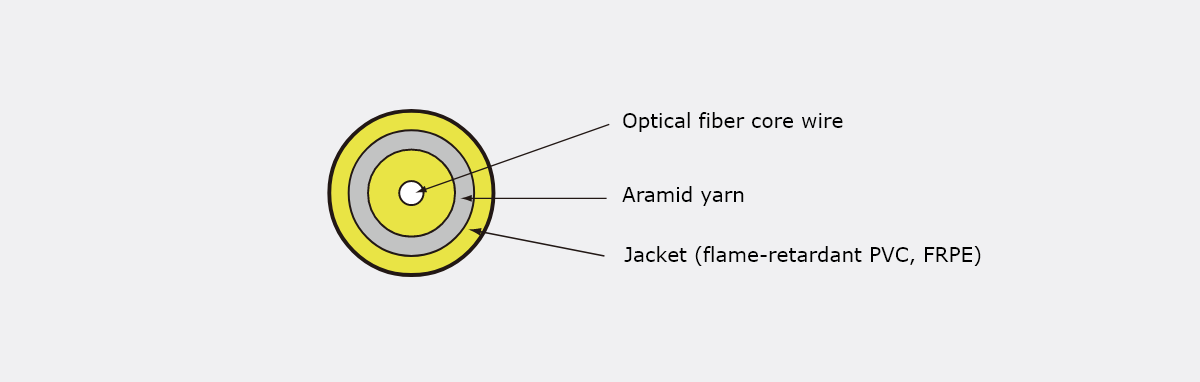

Section drawing
Specifications
| Code | TC2.0-OFNR | TC1.7* | |
|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | ||
| No. of fibers | (fibers) | 1 | |
| Diameter of optical fiber | (mm) | 0.9 | |
| Cord diameter | (mm) | 2.0 | 1.7 |
| Weight | (kg/km) | 4.0 | 2.4 |
| Allowable tensile strength | (less than N) | 110 | 80 |
| Allowable bending radius | (more than mm) | 15 | |
| Flame-retardant characteristics | UL OFNR | JIS C 3005 inclination | |
This product is an eco-friendly item.
The product with TC1.7-OFNR specification is also available.
