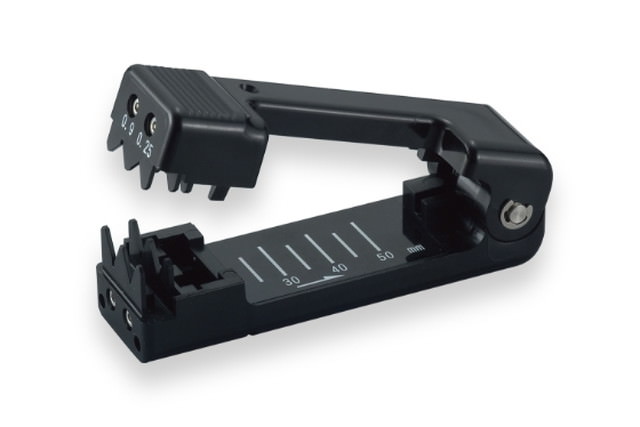

Jacket Removers
This product is a tool to strip off the wrapping length of a sheath and cut it without damaging the conductor of the covered cable for communication (for in-station use).
[Product code]
0.4Jacket Remover P2682050
0.5Jacket Remover P2682053
0.65Jacket Remover P2682056
0.4BJacket Remover P2682051
0.5BJacket Remover P2682054
0.4CJacket Remover P2682052
0.5CJacket Remover P2682055
0.65CJacket Remover P2682057
Specifications
→ Can slide sideways
| Compatible codes/cables | Plate color | Dimensions | Weight (g) | |
|---|---|---|---|---|
| 0.4/0.4C | 0.4 mm " "-fiber print station cable | Yellow | 100×20×40 mm | 80 g |
| 0.4 mm “ “ vs PVC cable for station termination | ||||
| 0.5/0.5C | 0.5 mm " "-fiber print station cable | Red | ||
| 0.5 mm “ “ vs PVC cable for station termination | ||||
| “ “ vs PVC jumper fiber | ||||
| 0.5 mm PVC jumper fiber | ||||
| 0.5 mm single-fiber PVC nylon jumper wire | ||||
| 0.65/0.65C | 0.65 mm " "-fiber print station cable | Blue | ||
| “ " vs PCM station cable | ||||
| 0.4B | 0.4 mm AC bus cable | Green | ||
| 0.5B | 0.5 mm AC bus cable | Brown | ||

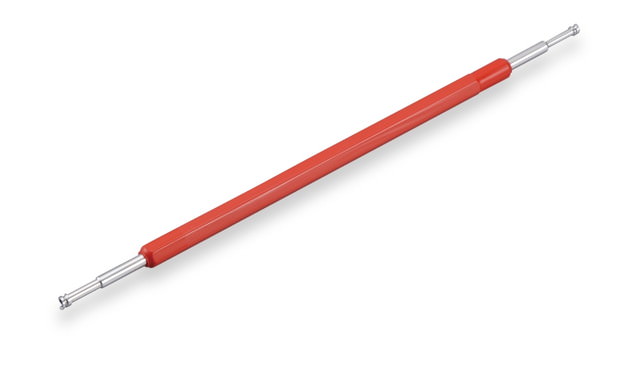

Neo Unwrap Tool
This product is a tool to manually wind cable that is equipped with T- and S-edges.
[Product code]
P2682048
Specifications
→ Can slide sideways
| T-end compatible terminal | S-end compatible terminal | ||
|---|---|---|---|
| 1 mm square terminal, 1.2 mm square terminal 1.4×0.8, 1.4×1.0 mm square terminal 1.5×0.7, 1.5×0.8 mm square terminal 1.6×0.3 mm V-shaped terminal 1.6×0.5 mm V-shaped terminal |
1.6×0.8, 1.8×1.0 mm This terminal is not compatible with square terminals. |
0.8 mm square terminal 0.9×0.8 mm square terminal 1 mm round wire crushing terminal 0.5 mm stranded wire crushing terminal 1.0×0.7 mm square terminal |
This terminal can be used for 0.6 mm square terminals, but in that case, this terminal may not fully exhibit its performance. |
| Dimensions | Weight (g) |
|---|---|
| 160×6×6 mm | 10 g |

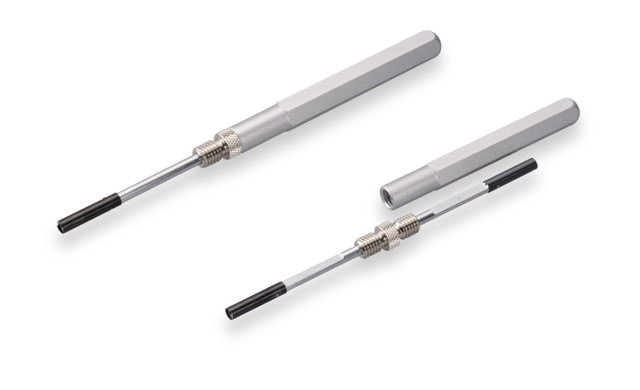

Neo Wrapping Tool
This product is a tool to manually wind cable that is equipped with T- and S-edges.
[Product code]
P2682026
Specifications
→ Can slide sideways
| Terminal dimension | Cord diameter | Remarks | |||
|---|---|---|---|---|---|
| di.0.5 mm | di.0.4 mm | di.0.32 mm | |||
| Winding form | |||||
| R | R | M | M | ||
| di. 1.0 mm (crush), di. 0.5 mm (2 stranded), 0.8×0.8 mm, 0.8×0.9 mm, 1.0 × (0.5 - 0.7) mm |
S | S | S | S | ● The letter R in the section of the winding form means regular; the letter M means modified. ● If the peripheral dimension can be found in the table on the left even when the terminal is differently shaped, this product can be used. |
| 1.0×1.0 mm, 1.0× (1.1 - 1.4) mm, 1.2×1.2 mm, 1.5× (0.7 - 0.8) mm, 1.4×0.8 mm, 1.6× (0.5 - 0.8) mm |
T | T | ‒ | ‒ | |
| Dimensions | Weight (g) |
|---|---|
| 160×12×12 mm | 40 g |
