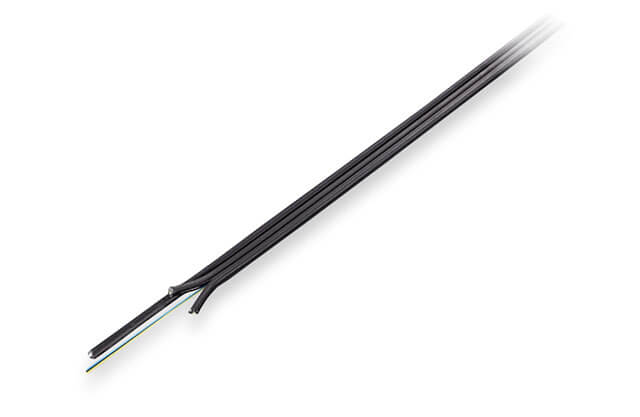

- Drop Cables
Features
- The main unit is built with nonmetallic material; accordingly, this product can be directly connected into houses.
You do not have to worry about lightning, even without protective devices. - Thanks to its small diameter and light weight, this product has excellent handleability and operability.
- SM (0.25 UV) with 1- and 2-fiber and SM (4-optical fiber ribbon) with 4- and 8-fiber are available.
- The jacketed optical fiber can be simply taken out because of the existing notch.
- Small diameter bending (bending radius: 15 mm) is also supported.

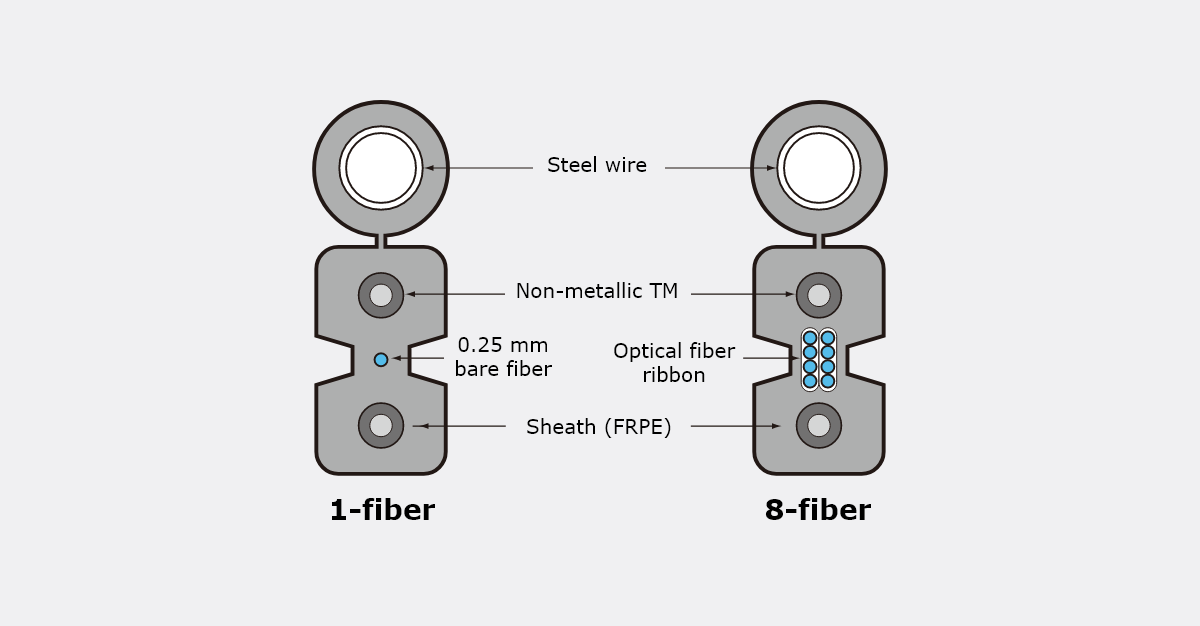

Section drawing
Specifications
| Code | TD-1-E-FR | TD-2-E-FR | TD-4-E-FR | TD-8-E-FR | |
|---|---|---|---|---|---|
| Optical fiber type | SM | ||||
| No. of fibers | (fibers) | 1 | 2 | 4 | 8 |
| Diameter of optical fiber | (mm) | 0.25 | 0.3×1.1 | ||
| Sheath diameter | (mm) | 2.0×5.0 | 2.0×6.0 | ||
| Weight | (kg/km) | 20 | 25 | ||
| Allowable tensile strength | (less than N) | Suspension wire: 660 | |||
| Main unit: 70 | |||||
| Allowable bending radius | (more than mm) | 15 | |||
| Flame-retardant characteristics | JIS C 3521 | ||||
Example of product name indication
| TD | - | 1 | - | E-FR |
|---|---|---|---|---|
| ① | ② | ③ |
- Cable code (D→Drop)
- No. of fibers
- Sheath (FRPE sheath)
