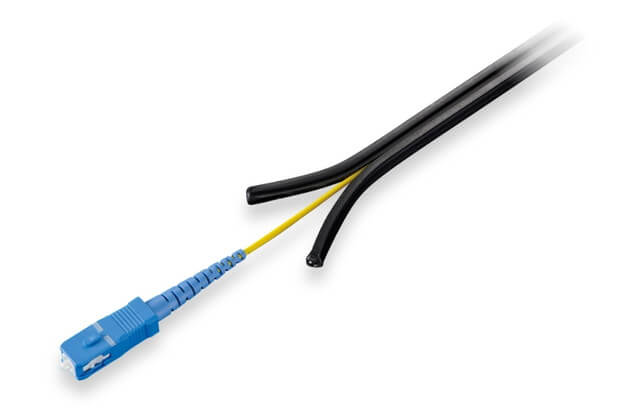

Shock Resistant Cables
[Applications]
Indoor and outdoor LAN, wiring between racks
Features
- This product is excellent in impact resistance, lateral pressure resistance, and linearity.
- Structure impedes transmission loss from increasing even when cable is fixed using regular staples.
- Outer cord diameter of 1.7 mm allows for connector attachment.
- Splitting groove on the side of the cable makes termination easy.
- Environmentally-friendly, halogen free, and flame-retardant.

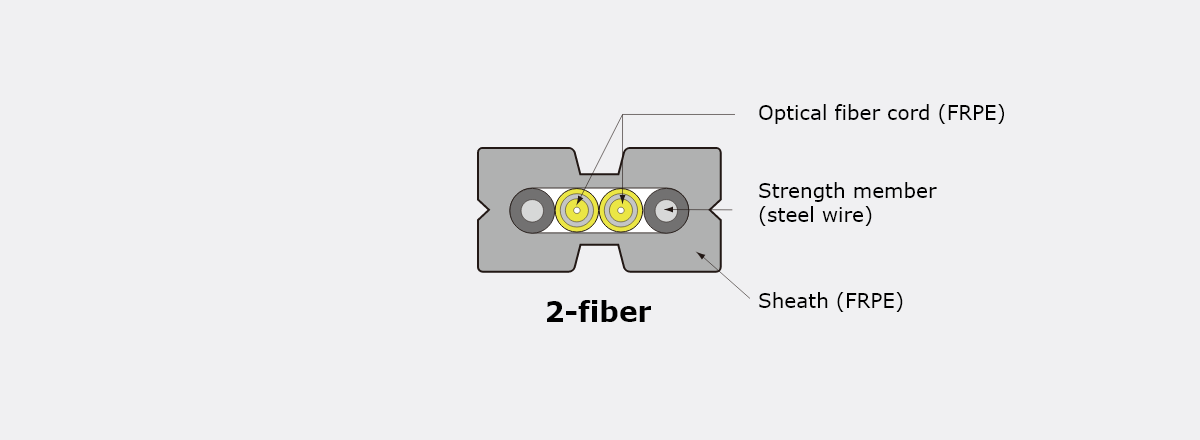

Section drawing
Specifications
| Code | TSP1.7-1-E-FR | TSP1.7-2-E-FR | |
|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | ||
| No. of fibers | (fibers) | 1 | 2 |
| Cord diameter | (mm) | 1.7 | |
| Sheath diameter | (mm) | 4.5×7.5 | 4.5×9.0 |
| Weight | (kg/km) | 40 | 50 |
| Allowable tensile strength | (less than N) | 480 | |
| Allowable bending radius | (more than mm) | 45 | |
| Flame-retardant characteristics | JIS C 3521 | ||
