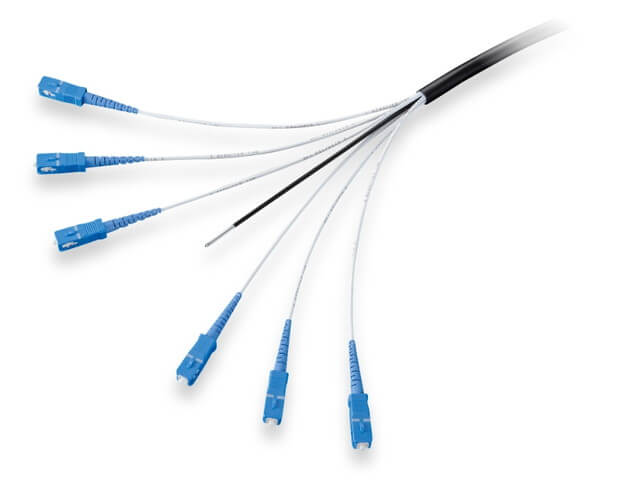

“Tough-light” Cables (flexible cable type)
[Applications]
Indoor horizontal LAN wiring, wiring between racks (available for outdoor cabling)
Features
- The cord features “Tough-light” cord specifications; it does not kink and is unlikely to break or remain bent.
- The cord jacket is environment-friendly, halogen-free and flame-retardant.
- Steel stranded wires are used in the tension member; accordingly the cable has excellent flexibility.
- This product resists repeated bending, which enables it to be on reels.

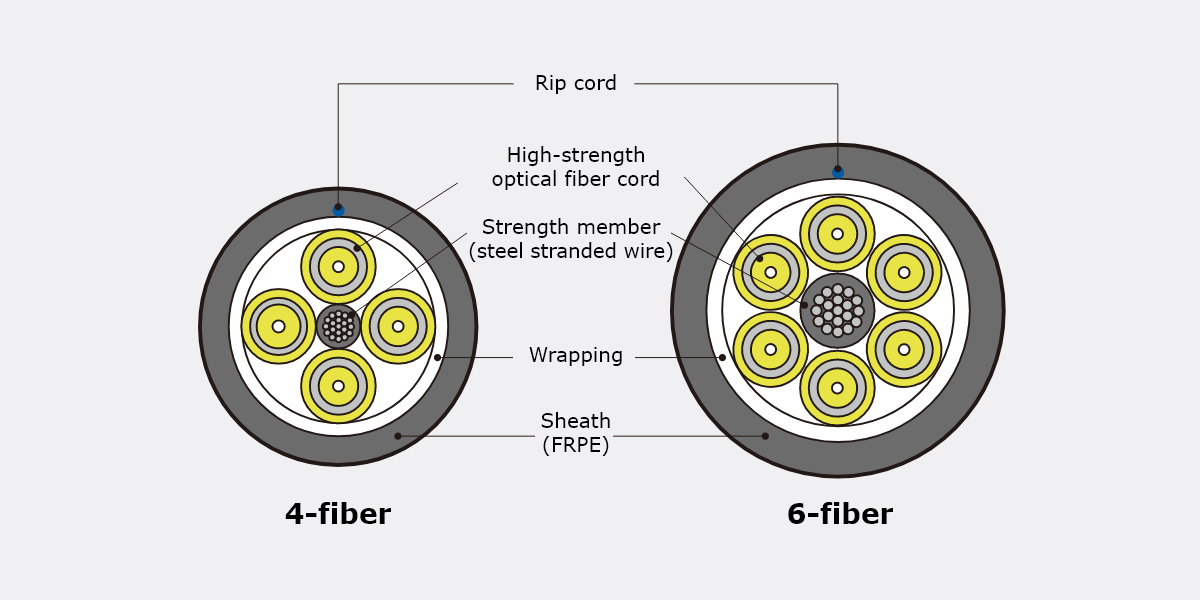

Section drawing
Specifications
| Code | TEC2.0-ｎ-E-FR-GS-WB | |||
|---|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | |||
| No. of fibers | (fibers) | 2 | 4 | 6 |
| Cord diameter | (mm) | 2.0 | ||
| Sheath diameter | (mm) | 8.0 | 9.0 | |
| Weight | (kg/km) | 60 | 70 | |
| Allowable tensile strength | (less than N) | 220 | 1200 | |
| Allowable bending radius | (more than mm) | 80 | 90 | |
| Flame-retardant characteristics | JIS C 3005 inclination | |||
