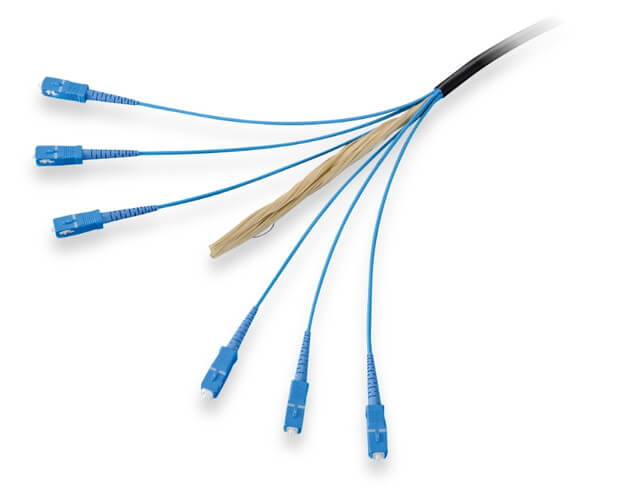

“Tough-light” Cables (movable cable type)
[Applications]
Internal wiring in industrial equipment (moving part), wiring between devices
Features
- The cord features the “Tough-light” cord specification, in other words, it does not kink, is unlikely to break, and is unlikely to have bending inclination.
- The cord jacket is made from flame-retardant PVC approved by UL AWM (VW1).
- The tension member features aramid yarn nonmetallic specifications, enabling the cable to be more flexible, lighter, excellent in movability and suitable for curves and U-shapes.

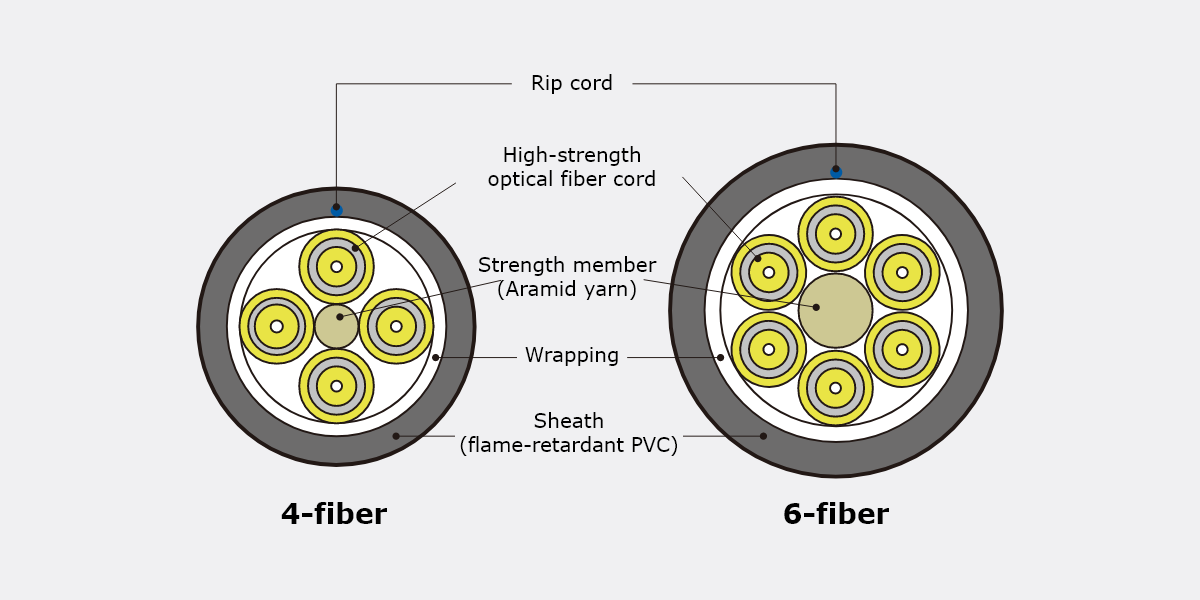

Section drawing
Specifications
| Code | TELC-n-V-VW1 | |||
|---|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | |||
| No. of fibers | (fibers) | 2 | 4 | 6 |
| Cord diameter | (mm) | 2.0 | ||
| Sheath diameter | (mm) | 6.5 | 7.5 | 8.5 |
| Weight | (kg/km) | 35 | 45 | 60 |
| Allowable tensile strength | (less than N) | 800 | 900 | 600 |
| Allowable bending radius | (more than mm) | 65 | 75 | 85 |
| Flame-retardant characteristics | UL VW1 | |||
Contact us about 8-fiber or more.
