Features
- SM (0.25 UV) with 1- and 2-fiber, SM (2-optical fiber ribbon) with 2-fiber, and SM (4-optical fiber ribbon) with 4- and 8-fiber are available.

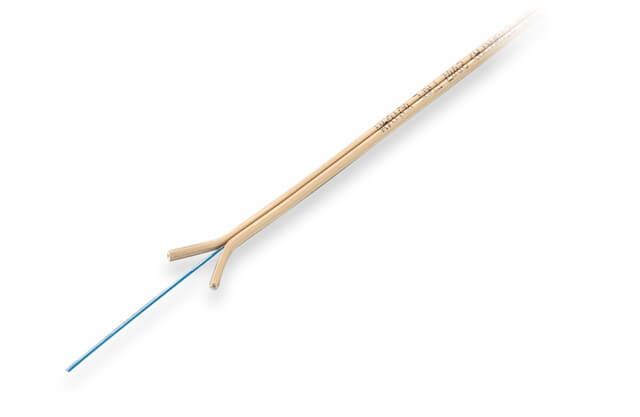

- The jacketed optical fiber can be simply removed because of the existing notch.
- Small diameter bending (bending radius: 15 mm) is also supported.

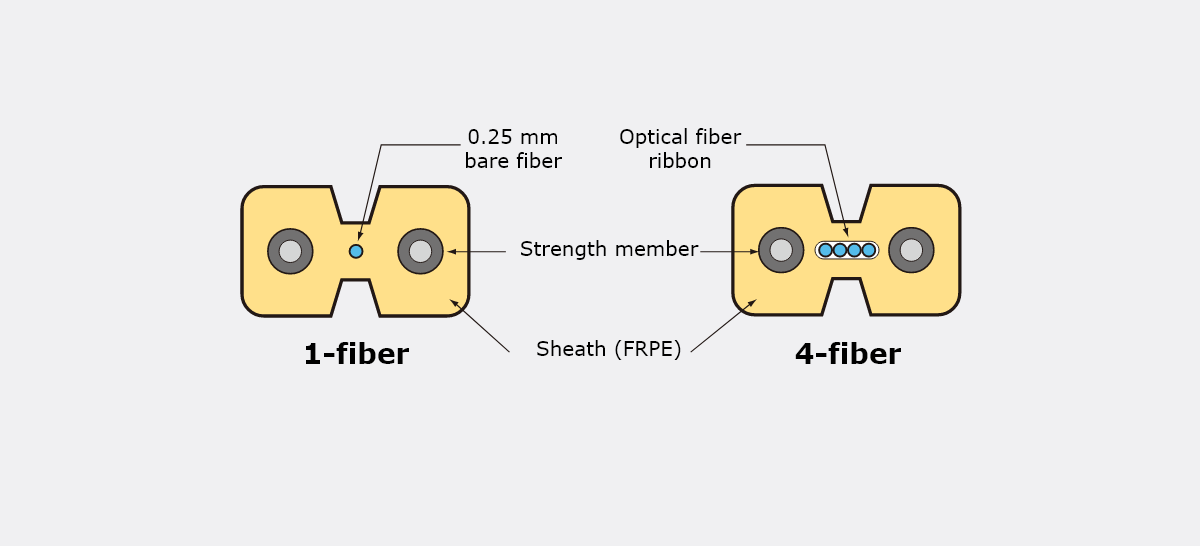

Section drawing
Specifications
| Code | Tl-1-E-FR | Tl-2-E-FR | Tl-2T-E-FR | Tl-4T-E-FR | Tl-8T-E-FR | |
|---|---|---|---|---|---|---|
| Optical fiber type | SM | |||||
| No. of fibers | (fibers) | 1 | 2 | 2 | 4 | 8 |
| Diameter of optical fiber | (mm) | 0.25 | 0.3×0.6 | 0.3×1.1 | ||
| Sheath diameter | (mm) | 2.0×3.0 | 2.0×4.0 | |||
| Weight | (kg/km) | 10 | 15 | |||
| Allowable tensile strength | (less than N) | 150 | ||||
| Allowable bending radius | (more than mm) | 15 | ||||
| Flame-retardant characteristics | JIS C 3005 inclination | JIS C 3521 | ||||
Example of product name indication
| TI | - | 1 | - | E-FR |
|---|---|---|---|---|
| ① | ② | ③ |
- Cable code (I→Indoor)
- No. of fibers
- Sheath (FRPE sheath)
