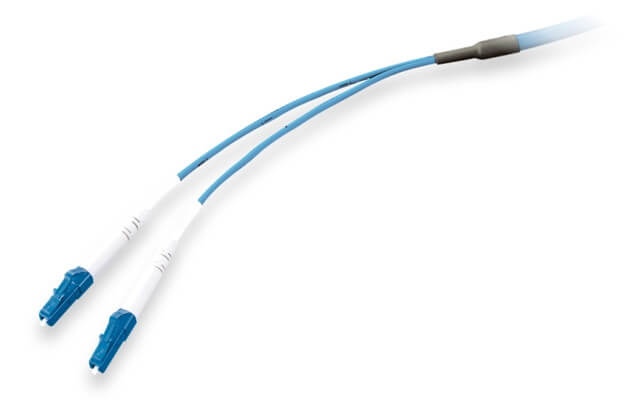

Cord Type Optical Fiber Cables for Fiber Channel
[Applications]
Wiring within devices, wiring between racks
Features
- Cord diameter: 1.8 mm, cable diameter: approx. 5 mm
- Aramid fiber tension member provides superior flexibility.
- This product features flame retardancy meeting UL Riser specifications.

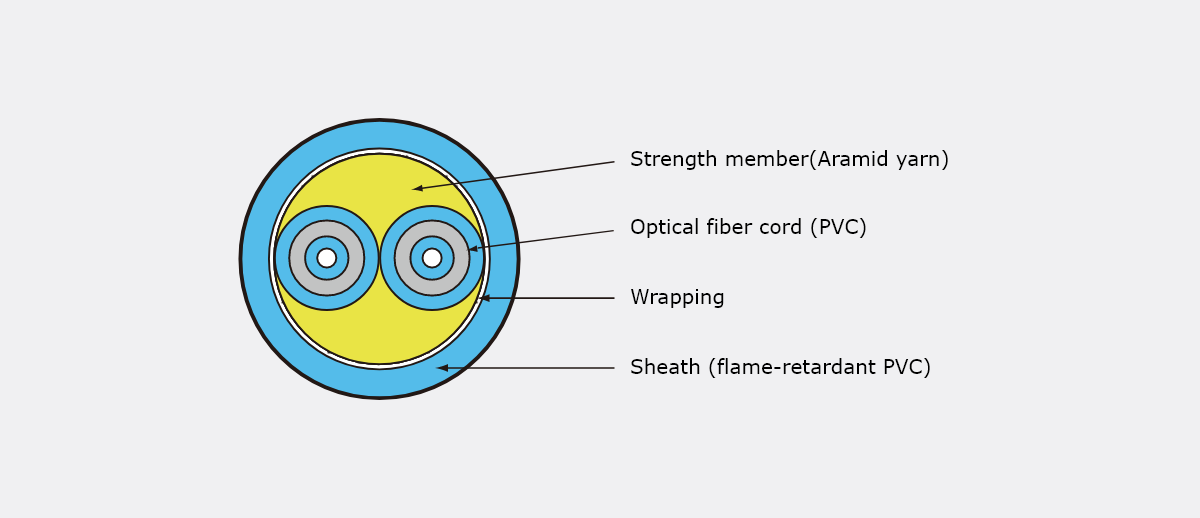

Section Drawing
Specifications
| Code | TLC-2-V-OFNR | |
|---|---|---|
| Optical fiber type | GI (50/125) | |
| No. of fibers | (fibers) | 2 |
| Cord diameter | (mm) | 1.8 |
| Sheath diameter | (mm) | 4.9 |
| Weight | (kg/km) | 20 |
| Allowable tensile strength | (less than N) | 600 |
| Allowable bending radius | (more than mm) | 50 |
| Flame-retardant characteristics | UL OFNR | |
If you would like to request a quotation or have a detailed consultation, please use the inquiry form.
