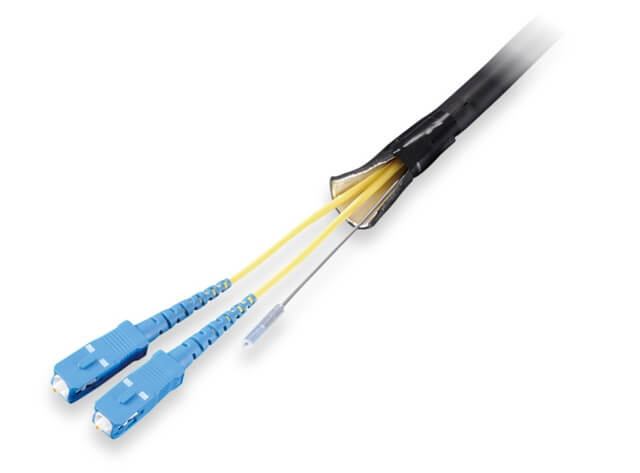

Optical Fiber Cables
(2.0 mm cord type) LAP
[Applications]
Exterior overhead wiring
Features
- Cord diameter: 2.0 mm
- Color stripe sheaths are also supported.

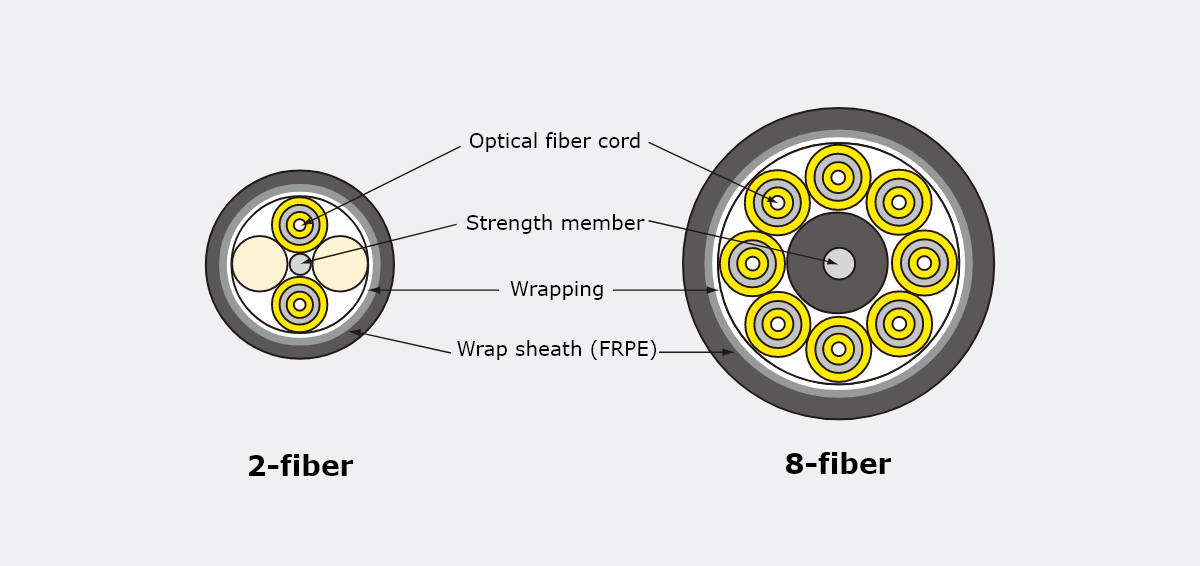

Section drawing
Specifications
| Code | TC2.0-n-LAP-FR | ||||||
|---|---|---|---|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | ||||||
| No. of fibers | (fibers) | 2 | 4 | 6 | 8 | 12 | 16 |
| Cord diameter | (mm) | 2.0 | |||||
| Sheath diameter | (mm) | 9.5 | 10.5 | 12.0 | 15.0 | 17.5 | |
| Weight | (kg/km) | 85 | 105 | 130 | 195 | 225 | |
| Allowable tensile strength | (less than N) | 420 | 660 | ||||
| Allowable bending radius | (more than mm) | 95 | 105 | 120 | 150 | 175 | |
| Flame-retardant characteristics | JIS C 3521 | ||||||
