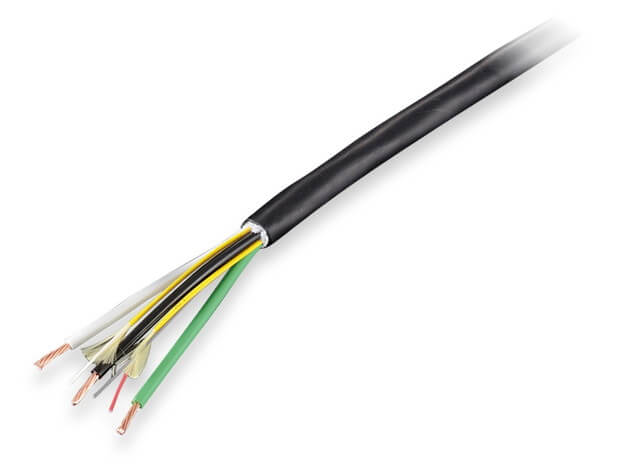

Optical/Metal Composite Cables (electric power)
[Applications]
Wiring between interior or exterior devices
Features
- This product is an optical/metal composite cable (power line for electric supply) to be used for both interior and exterior device wiring.
- Integration of optical and metallic (electric power) lines improves cable wiring workability.
- For the optical portion, both optical fiber ribbon and single fiber are available.
- This product features halogen-free specifications considering the environment.
- Up to 8SQ power line is supported.

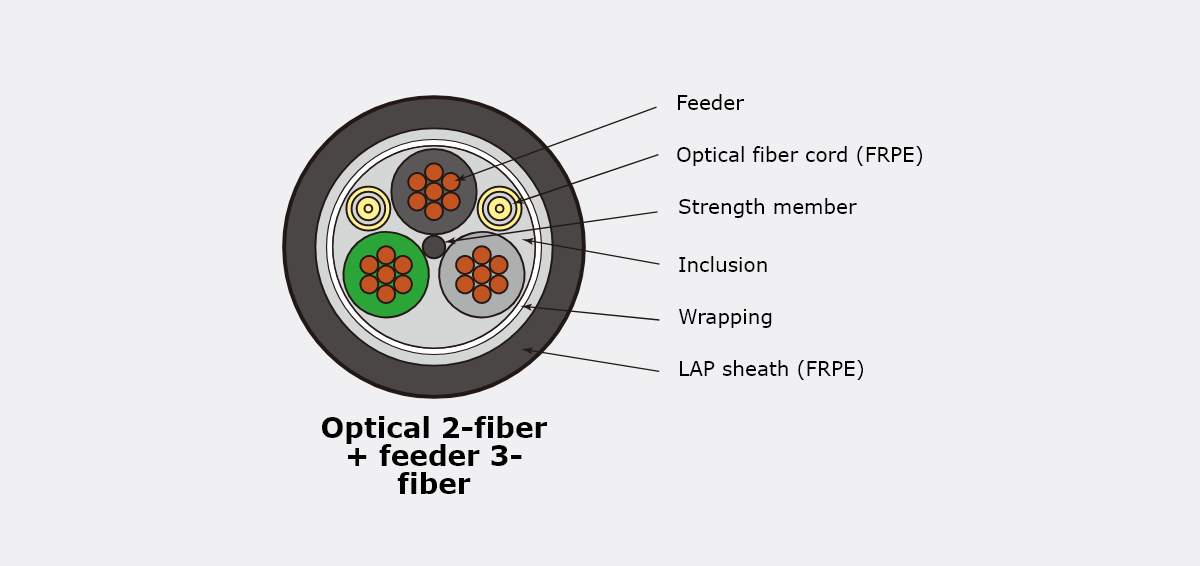

Section drawing
Specifications
| Code | HYB-TC1.7-n1+conductor size×n2 / HYB-T4TC-n1+conductor size×n2 |
||||||
|---|---|---|---|---|---|---|---|
| Optical fiber type | SM, GI (50/125) | ||||||
| Conductor size | (SQ) | 2 | 3.5 | 5.5 | |||
| No. of fibers | Metal (core) | 2 | 3 | 2 | 3 | 2 | 3 |
| Optical (core) | 1 - 4 | ||||||
| Sheath diameter | (mm) | 14.0 | 16.0 | ||||
| Weight | (kg/km) | 180 | 200 | 220 | 250 | 280 | 330 |
| Allowable tensile strength | (less than N) | 430 | |||||
| Allowable bending radius | (more than mm) | 140 | 160 | ||||
| Flame-retardant characteristics | JIS C 3521 | ||||||
Combination is available according to your request.
