Fiber cord cable equipped with an optical connector is used to connect between optical communication devices and between optical fiber cable and optical communication devices. We will deliver your specified connectors, attaching them to one or both edges of an optical fiber, optical cord or optical cable according to your applications.

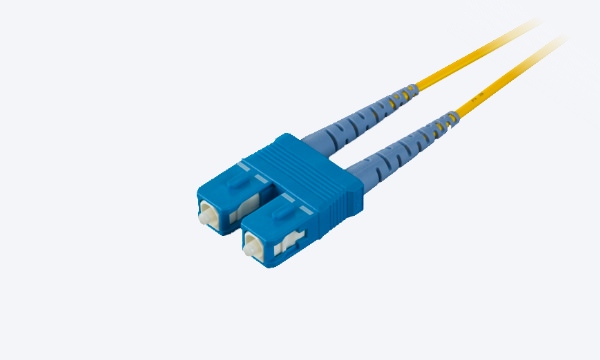

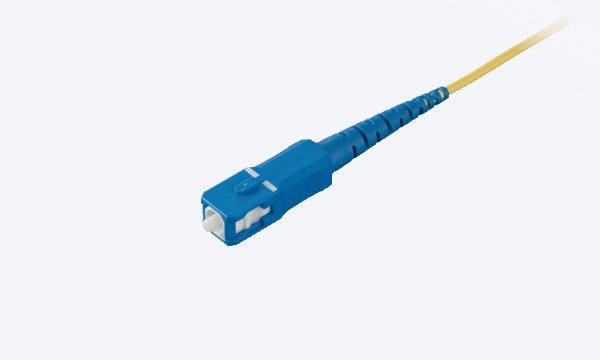

SC
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5973 (F04) | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |
SC Short Boots
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5973 (F04) | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

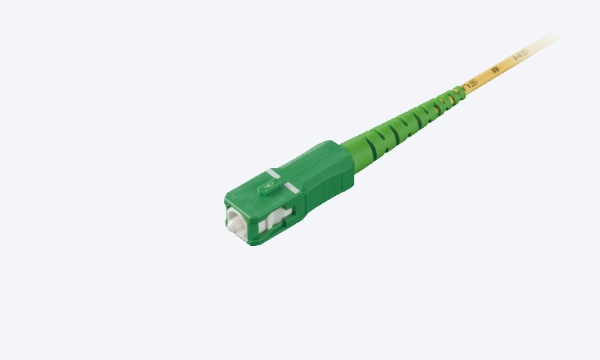

SC/APC
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5973 (F04) | APC (standard: conical ferrules) |
― | SM: 0.5 dB or less | di. 1.7, 2 |

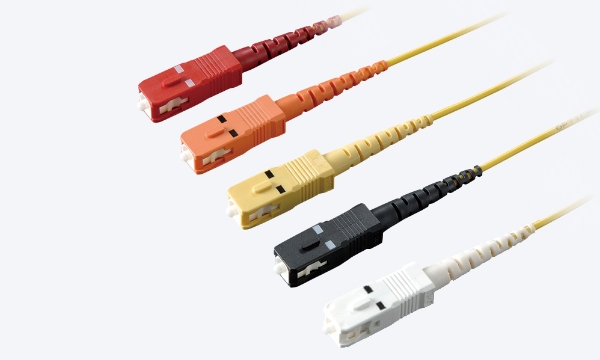

SC color To detail page
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5973 (F04) | PC, SPC/AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |
SC2
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5973 (F04) | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

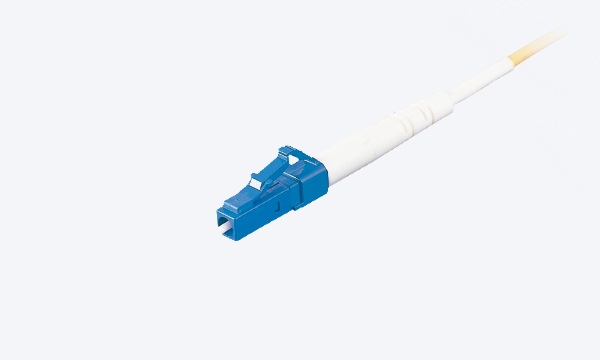

LC
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| IEC61754-20 | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

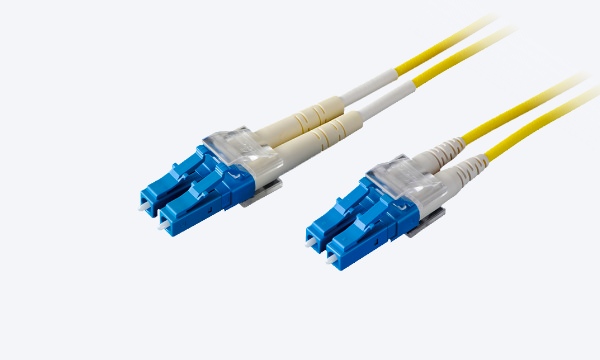

LC Short Boots
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| IEC61754-20 | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

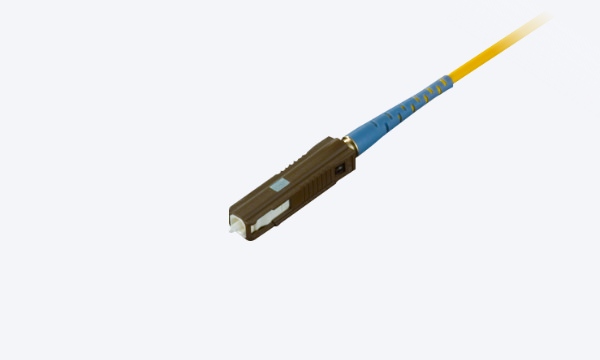

MU
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5983 (F14) | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |
SCF
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5973 (F04) | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

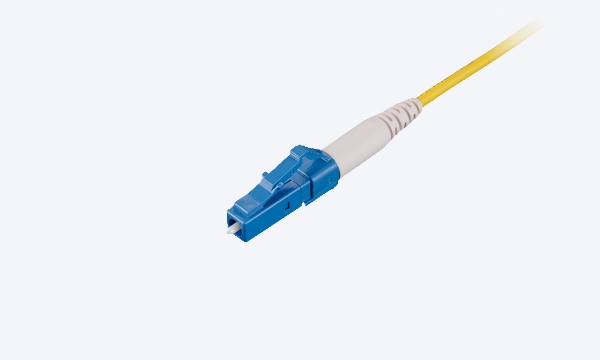

LCF (integrated type)
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| IEC61754-20 | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

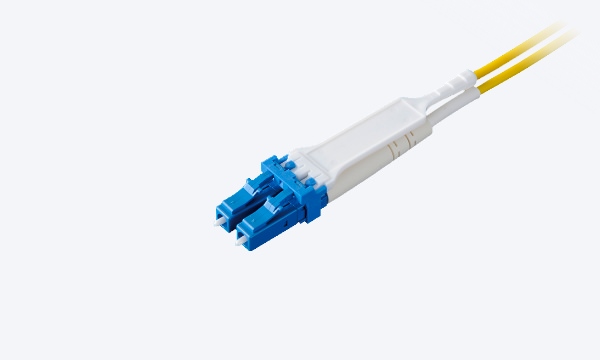

DLC (clip type)
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| IEC61754-20 | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

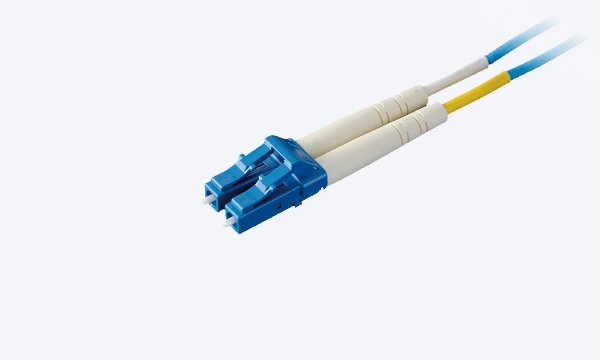

LCFPP (integrated type: with pull tab)
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| IEC61754-20 | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |
FC
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5970 (F01) | PC, SPC, AdPC, UPC | PC | SM: 0.5 dB or less, MM: 0.3 dB or less |
di. 1.7, 2 |

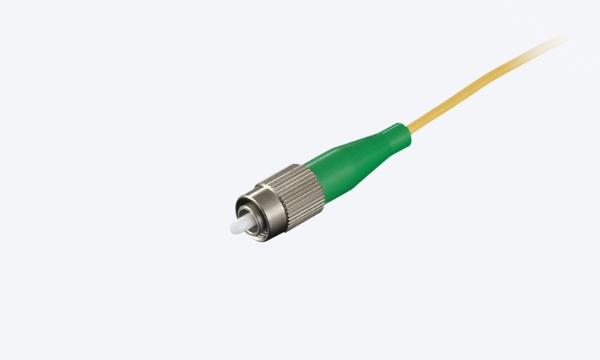

FC/APC
→ Can slide sideways
| JIS standard | Polishing types | Insertion loss (against master plug) |
Applicable cord diameter (mm) | |
|---|---|---|---|---|
| SM | MM | |||
| C5970 (F01) | APC (standard: conical ferrules, narrow key) |
― | SM: 0.5 dB or less | di. 1.7, 2 |
Typical polishing methods and their features
→ Can slide sideways
| Polishing types | Features | Return loss |
|---|---|---|
| PC | This type applies spherical polish to a ferrule endface, restraining Fresnel reflection without matching material to provide PC (Physical Contact). | 25 dB or more |
| SPC/AdPC | Applying PC polish to a mirror plane enables low reflection. | 40 dB or more |
| UPC | Applying PC polish to a mirror plane more and more enables further lower reflection. | 50 dB or more |
| APC | This type applies angled spherical polish to a ferrule endface, achieving ultra-low reflection. | 60 dB or more |
